Products / LED Controllers / Universal LED Controllers - USB2.0/RS232, up to 256 Channels Universal 4-Channel LED Controllers with External Triggers and Voltage Monitoring
Universal 4-Channel LED Controllers with External Triggers and Voltage Monitoring
$1,110.00USD – $1,810.00USD
Computer-controllable, multi-channel, universal LED drivers, which can be used to drive any type of LED in any of the three (3) modes: ‘NORMAL’ (or ‘constant current’), ‘STROBE’, and/or external ‘TRIGGER’ mode. Each unit comes with PC-based software with a user-friendly GUI, which enables users to drive LEDs without the need to write any code. In addition, a powerful SDK and a rich RS232 command set are provided, in order for users to write their own software in order to integrate Mightex’s LED drivers into their own systems. Furthermore, the drivers have a built-in security feature, allowing users to limit LED driving current and voltage.
Customize your product
- Packing List
- Selection Guide
- User's Guide
Specifications: (Click here to download datasheet)
|Power Supply Input Voltage, Vdc||9 ~ 24||V|
|Power Supply Input Current||< 4,000||mA|
|Per Channel Driving Voltage (max) 1||(Vdc - 0.5)||V|
|Max Voltage Difference|
(Power Supply Vdc - LED Vop)
|Per Channel Driving Current||0 ~ 1,000 (“NORMAL” MODE)||mA|
|0 ~ 3,500 (“STROBE” or “TRIGGER” MODE)||mA|
|Output Current Resolution||12||bit|
|Output Current Linearity||+/-4 (or +/-0.5%)||mA|
|Output Current Repeatability||+/-1 (or +/-0.2%)||mA|
|Trigger Input High Level||4.5 ~ 10.0||V|
|Trigger Input Low Level||0.8 (Max.)||V|
|Forward Voltage Monitoring Accuracy||N.A.||+/-10||N.A.||+/-10||mV|
Notes: 1. Maximum Output Voltage is 0.5V less than the Power Supply Input Voltage. For instance, with a Power Supply Input Voltage of Vdc = 24V, the Maximum Output Voltage Vmax would be Vdc – 0.5V = 23.5V.
2. Each output channel can be individually configured to work in one of the following three (3) modes, controlled through a PC-based software with GUI. In all three modes, overdrive current limit can be set:
Normal: Constant current output at any value from 0mA to 1000mA with 12-bit resolution.
Trigger: External trigger signal could be used to turn on each individual channel, generating driving current with any user-defined waveform. Alternatively, each output channel can work under the “FOLLOWER” mode, in which the current output follows the waveform of the trigger input; and
Strobe: Internal Strobe Generator generates frequencies as high as 25KHz. The strobe signal (i.e. current levels, duty cycle and strobe frequency) can be set through software. For AA and AV series, the strobe signal can be a user-defined arbitrary waveform with 128 data points.
3. Arbitrary Waveform. Using the included application software or SDK or RS232 command set, users may define any arbitrary waveform using 128 data points.
4. Proper heat dissipation should be provided to the LED controller in the customer’s system in order to prevent over-heating, which may lead to self-shutdown by the LED controller for protection purpose. In addition, the total output current of all channels should not exceed the capacity of the power adapter.
5. It is not recommended to mix Type-A/J LEDs with Type-B LEDs on a single unit of this controller. Please operate Type-A/J LED’s on one unit and Type-B LEDs on another.
|# of Data Points for Waveform Definition||128||2|
|Trigger Pulse Width||100 (Minimum)||μs|
|Max Trigger Delay||25||μs|

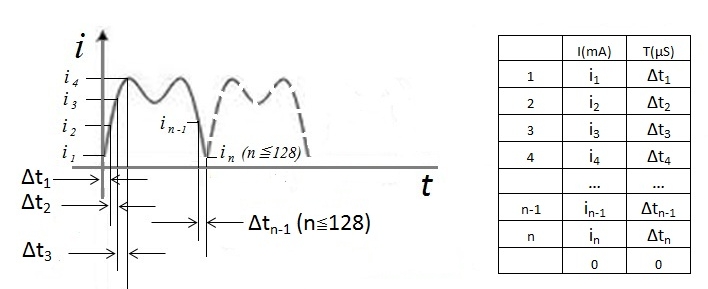

What’s “Arbitrary Waveform”?
– For some LED controller models, one can use up to 128 pairs of [current (mA), duration (μs)] data points to define the ‘shape’ of the waveform. This will allow one to define an ‘Arbitrary Waveform’ for the LED driving current and consequently the LED’s optical output. Details see diagram below.
- Machine vision
- Semiconductor equipment
- Testing instruments
- Medical instruments
- Computer controllable
- Universal – suitable for any LED
- Capable of driving variable loads
- User friendly application software with GUI
- SDK and Rich RS232 command set included for custom applications
- Normal, Strobe and Trigger mode for every channel
- Programmable constant current, pulse-width modulation and/or arbitrary waveform
- Driving current up to 1A in DC mode and up to 3.5A in pulse mode, with over current protection
- Up to 23.5V output voltage for each channel
Programmable rising or falling edge external trigger
- Built-in non-volatile memory, can be used without a PC
- Universal 4-Channel LED Controller Datasheet (.pdf file, 824KB)
- LED Controller Quick Start Guide (.pdf file, 367KB)
Mechanical Drawing Downloads:
- SLC-series 4-channel LED controller installation drawing (.pdf file, 52KB)
- SLC-series 4-channel LED controller 3D CAD drawing (.stp file, 434KB)
- SLC-series LED controller software package download (.zip file, 3.8MB)
Standard Packing List:
- 1x LED controller
- 1x 12Vdc power supply (upgradeable to 24Vdc for $19/ea)
- 1x USB Cable (for -U models) or 1x RS232 Cable (for -S models)
- SLC-series LED controller software package download (.zip file, 3.7MB) including Windows based application software, SDK, User’s Guide, SDK Manual, and example codes in C++ and Delphi.
LED Driver Control Panel Screen Shot
The standard current SLC-series LED controllers have four (4) models (i.e. AA, AV, SA, and SV). The following table, which can also be used as a product selection guide, compares the key features of the 4 product models.
|P/N||# of Channels||Control Mode(1)||Arbitrary Waveform(2)||Interface (USB or RS232)||Forward Voltage Monitoring|
|SLC-SA04-US||4||•||•||•||U or S|
|SLC-SV04-US||4||•||•||•||U or S||•|
|SLC-AA04-US||4||•||•||•||•||U or S|
|SLC-AV04-US||4||•||•||•||•||U or S||•|
Product specifications are subject to change without prior notice. All prices are FOB California, unless otherwise stated. Please call/email for volume pricing.
