Lightguide Adapters for LED Sources

$225.00USD – $1,020.00USD

Customize your product

Clear
  • Product Details
  • Drawings

A lightguide adapter can be used to couple light from a collimated LED source into a lightguide. Currently, Mightex offers the following lightguide adapters:

  • LCS-LGA23-0515: Lightguide adapter for 23mm-diameter DUV LED collimator source. For light guide with ferrule diameter of 5mm (typical 3mm-core light guide) and ferrule length of 15mm or more. Transmission range 200nm – 2200nm.
  • LCS-LGA22-0515: Lightguide adapter for 22mm-diameter LED collimator source and beam combiner. For light guide with ferrule diameter of 5mm (typical 3mm-core light guide) and ferrule length of 15mm or greater. Transmission range 350nm – 2000nm.
  • LCS-LGA22-0715: Lightguide adapter for 22mm-diameter LED collimator source and beam combiner. For light guide with ferrule diameter of 7mm (typical 5mm-core light guide) and ferrule length of 15mm or greater. Transmission range 350nm – 2000nm.
  • LCS-LGA22-0Q15, Lightguide adapter for 22mm LED collimator source and beam combiner. For light guide with ferrule diameter of 0.25″(6.35mm) and ferrule length of 15mm or greater. Transmission range 350nm – 2000nm.
  • LCS-LGA22-1115: Lightguide adapter for 22mm LED collimator source and beam combiner. For light guide with ferrule diameter of 11.1mm and ferrule length of 15mm or greater. Transmission range 350nm – 2000nm.

Below are some examples of how to use the lightguide adapters:

(1) With a collimated LED source

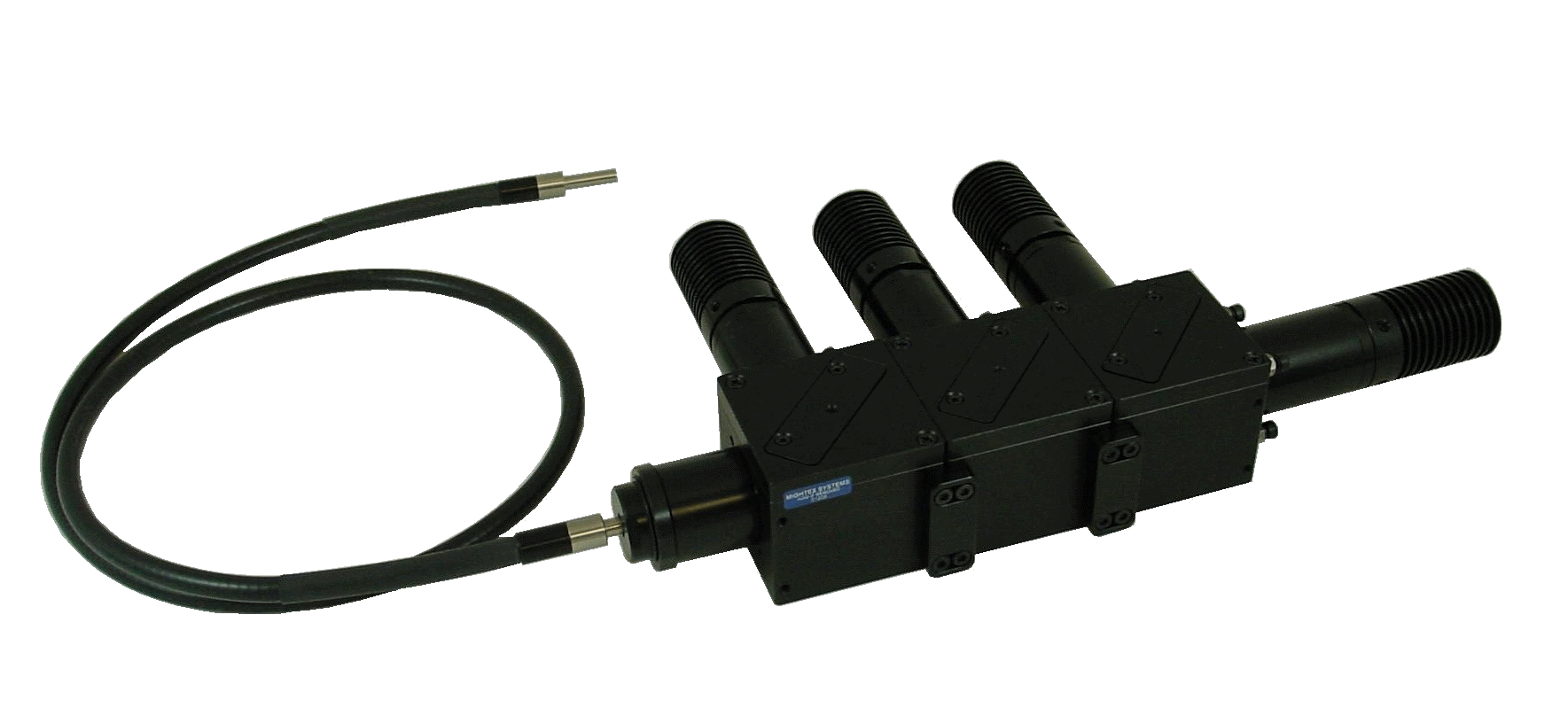

(2) With multi-wavelength beam combiners and collimated LED sources

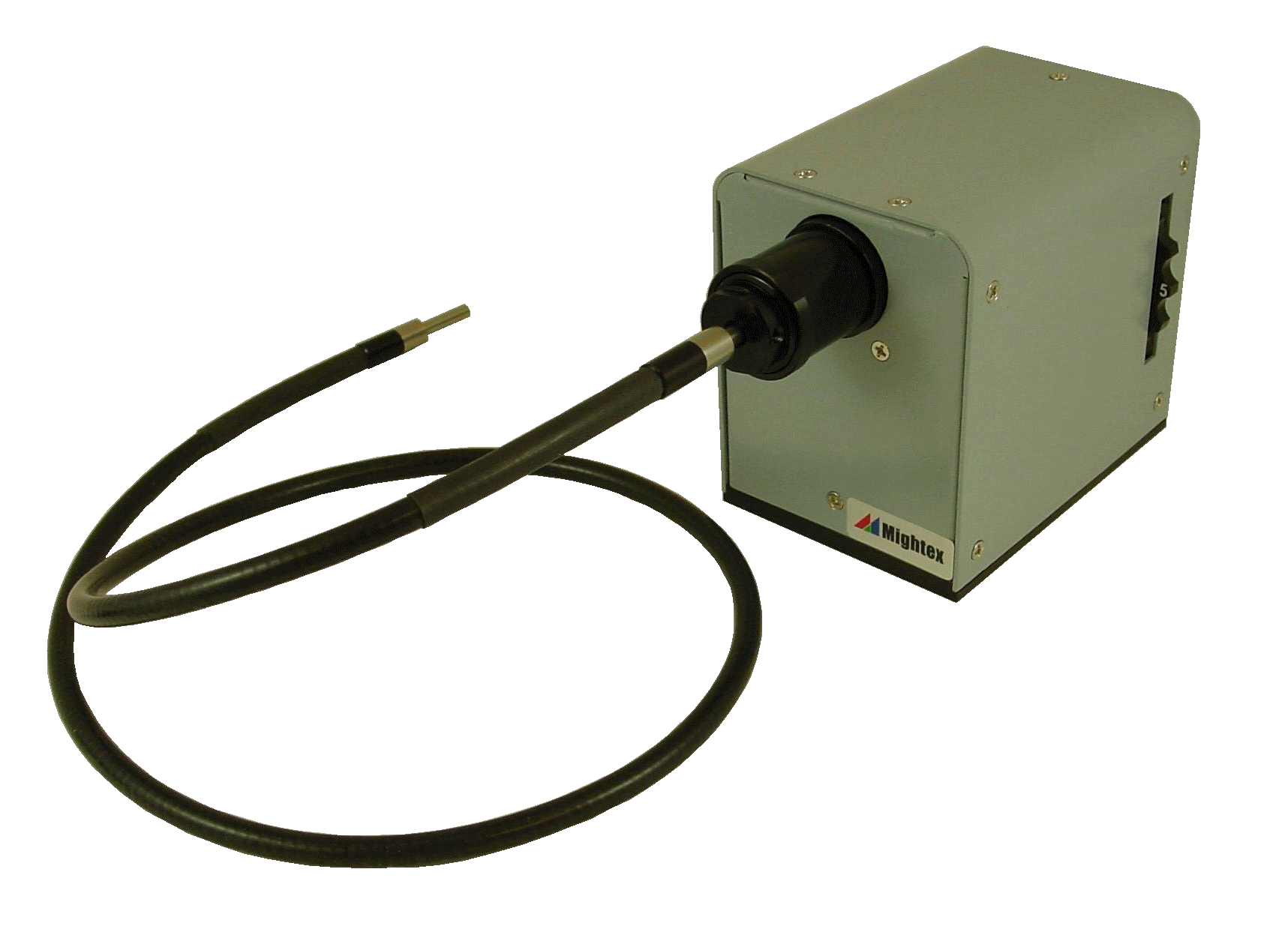

(3) With a WheeLED wavelength -switchable LED source

Installation Drawings:

Product specifications are subject to change without prior notice. All prices are FOB California, unless otherwise stated. Please call/email for volume pricing.
